Introduction

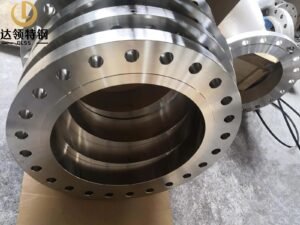

The ASTM A182 F304 Forged Orifice Flange is a specialized stainless steel flange designed for precise flow measurement and control in piping systems. Manufactured to ASME B16.36, it incorporates an orifice plate between a pair of flanges to measure fluid or gas flow accurately.

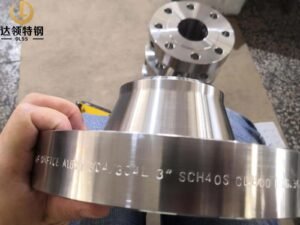

DLSS supplied 3″ WNRF (Weld Neck Raised Face) Orifice Flanges, SCH40S, Class 600#, forged from A182 F304 stainless steel, for an end-user project with GE. This demonstrates DLSS’s capability to deliver high-performance components for critical industrial applications.
Key Features
-
Material: ASTM A182 F304 (Austenitic Stainless Steel)
-
Type: Weld Neck Raised Face Orifice Flange (WNRF)
-
Size: 3″ (DN80)
-
Wall Thickness: SCH40S
-
Pressure Rating: Class 600#
-
Standard: ASME B16.36 (Orifice Flanges)
-
Application: Flow measurement in industrial piping systems
-
End User: GE
Specifications
| Item | Details |
|---|---|
| Standard | ASTM A182 / ASME B16.36 |
| Material | Stainless Steel F304 |
| Type | Forged Flange – Weld Neck Raised Face Orifice (WNRF) |
| Size | 3″ (DN80) |
| Schedule | SCH40S |
| Pressure Rating | 600# |
| Surface | Machined, rust-preventive coating |
| End User | GE (General Electric) |
| Applications | Power plants, heat exchangers, chemical plants, flow monitoring systems |
Applications
-
Power Generation – used in steam, gas, and water piping systems to monitor and control flow (supplied to GE).
-
Oil & Gas Industry – accurate measurement of hydrocarbons and process fluids.
-
Chemical & Petrochemical – control of acids, gases, and corrosive media.
-
Industrial Piping Systems – integration into heat exchangers, boilers, and reactors.
Advantages of F304 Stainless Steel
-
Corrosion Resistance – effective against oxidation and general corrosive environments.
-
Strength & Durability – forged structure ensures reliability under high pressure (Class 600#).
-
Versatility – widely used in flow measurement systems across multiple industries.
-
Cost Efficiency – more economical than higher alloy grades, suitable for general service.
Why Choose DLSS?
-
Specialized supply of orifice flanges (ASME B16.36), forged fittings, and pipe accessories.
-
Strict Quality Control – PMI, UT, ET, Hydro, dimensional checks.
-
Third-Party Inspection – SGS, BV, TUV certifications available.
-
Export Packaging – plastic caps, PE wrap, ISPM-15 wooden cases.
-
Proven Track Record – supplied GE and other leading global end users with stainless steel flanges and fittings.
