Introduction

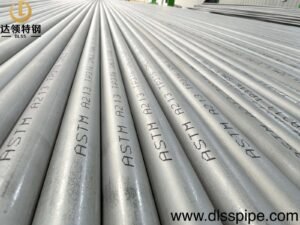

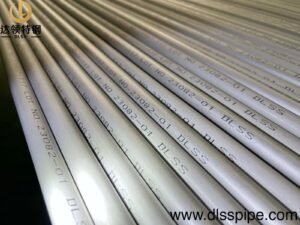

ASTM A213 TP316H Seamless Tube is specifically designed for high-temperature heat exchanger and boiler applications. DLSS supplies tubes in the size 19.05 mm outer diameter × 2.0 mm wall thickness × 6000 mm length, fully manufactured according to ASTM A213 / ASME SA213 standards.
Each tube undergoes a strict testing regime, including 100% Hydrostatic Testing (HT), 100% Eddy Current Testing (ET), and 100% Ultrasonic Testing (UT), ensuring reliable performance in critical applications. With its excellent corrosion resistance and high-temperature strength, TP316H stainless steel is a trusted solution for power plants, petrochemical facilities, and industrial heat recovery systems.
What is ASTM A213 TP316H?
TP316H is a high-carbon modification of the standard 316 stainless steel. The increased carbon content improves its creep resistance and high-temperature strength, making it suitable for continuous operation at elevated temperatures.
Key properties of ASTM A213 TP316H Seamless Tube include:
-
Enhanced mechanical strength at high temperatures
-
Excellent oxidation and corrosion resistance in aggressive environments
-
Long service life in heat exchangers, superheaters, and boilers
-
Seamless construction for superior pressure containment
Specifications
| Item | Details |
|---|---|
| Standard | ASTM A213 / ASME SA213 |
| Grade | TP316H (High-Carbon 316 Stainless Steel) |
| Size | 19.05 mm OD × 2.0 mm Wall Thickness × 6000 mm Length |
| Type | Seamless Tube |
| Heat Treatment | Bright Annealed / Solution Annealed |
| Non-Destructive Tests | 100% Hydrostatic, 100% Eddy Current, 100% Ultrasonic |
| Applications | Heat Exchangers, Boilers, Petrochemical, Power Generation Equipment |
Key Features
-
High-Temperature Reliability – TP316H offers greater strength and stability at elevated operating conditions.
-
Triple NDT Assurance – 100% HT + 100% ET + 100% UT ensures tubes are defect-free and safe for pressure service.
-
Superior Corrosion Resistance – Withstands aggressive acids, chlorides, and high-temperature oxidation.
-
Seamless Manufacturing – Provides uniformity, better metallurgical structure, and high pressure capability.
-
Extended Service Life – Ideal for continuous-duty industrial systems requiring reliability and durability.
Applications
-
Shell and Tube Heat Exchangers – Chemical, petrochemical, and refinery operations.
-
Boilers & Superheaters – Power plants and energy generation facilities.
-
Petrochemical Plants – High-pressure piping and heater systems.
-
Heat Recovery Systems – Industrial waste heat recovery and cogeneration units.
-
Process Equipment – High-temperature tubing in harsh environments.
Why Choose DLSS TP316H Tubes?
-
Strict ASTM A213 Compliance – Manufactured according to global standards.
-
Advanced Testing – 100% Hydrostatic, Eddy Current, and Ultrasonic inspections.
-
Global Supply Experience – Trusted by clients in 40+ countries.
-
Export-Ready Packaging – End-capped, bundled, and seaworthy wooden cases.
-
Custom Options – U-tubes, cut-to-length, and special tolerances available.
-
Frequently Asked Questions (FAQ)
Q1: What is the main difference between TP316L and TP316H tubes?
A1: TP316L has low carbon content for better weldability, while TP316H has high carbon content for improved strength and creep resistance at high temperatures.
Q2: Why is 100% HT, ET, and UT important?
A2: This triple testing ensures that each tube is free from leaks, surface defects, and internal flaws, providing maximum safety in critical heat exchanger applications.
Q3: Can DLSS provide TP316H tubes in U-bent form?
A3: Yes, we supply straight lengths and U-tubes for heat exchangers according to customer specifications.
Q4: What certifications are provided?
A4: Mill Test Certificates (EN 10204/3.1) are included, and third-party inspections (SGS, BV, TUV) are available upon request.
