Heat Exchanger Tube Packing & Global Delivery
Product protection and shipment planning for heat exchanger tube projects.
DLSS coordinates tube packing and delivery arrangements according to the material, tube form, finished dimensions and shipment requirements.
The packing method, handling arrangements and delivery scope are reviewed before dispatch.
Packing for Different Tube Forms
Packing is selected for the tube geometry, material, surface condition, bundle weight and expected handling.

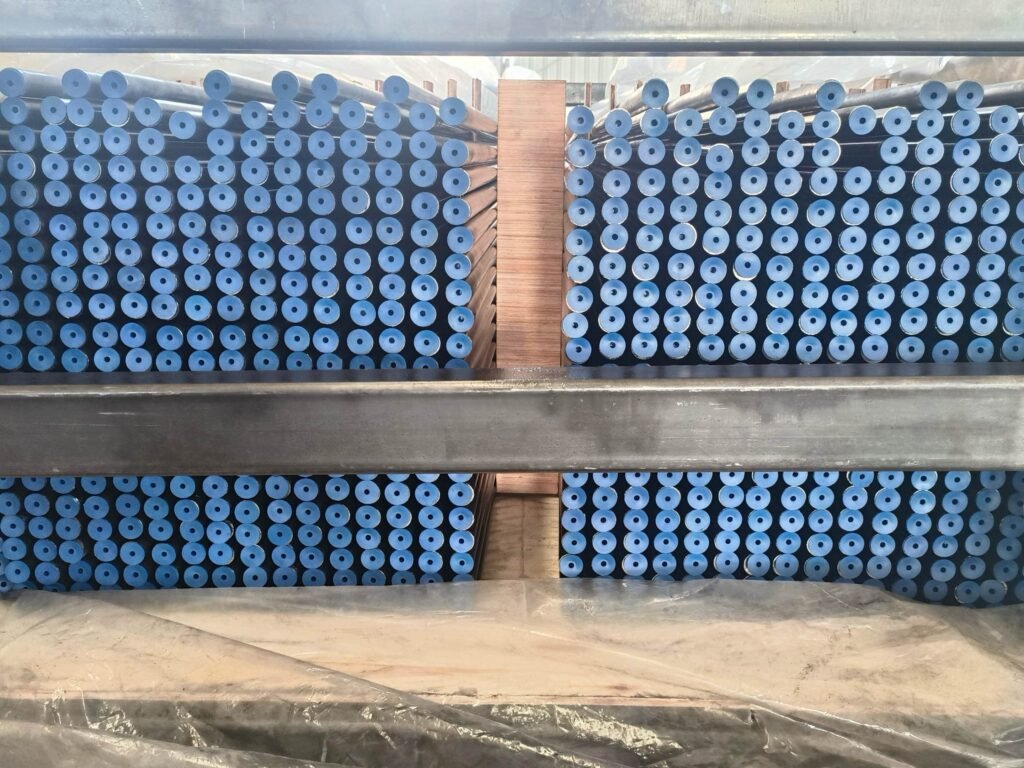

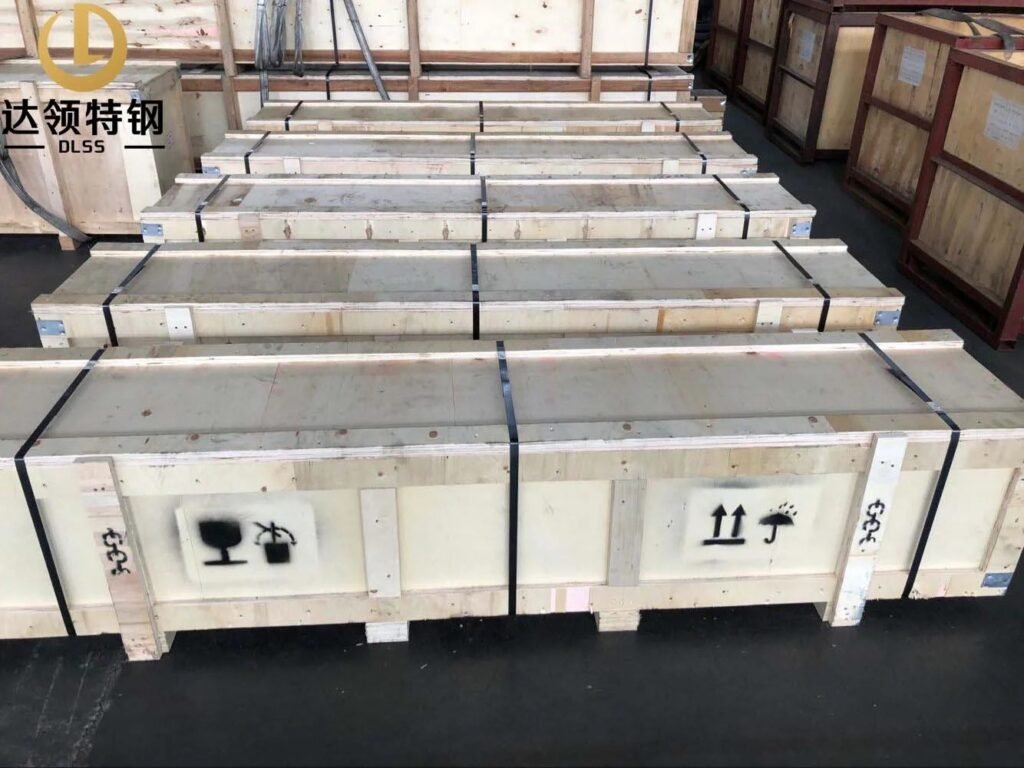

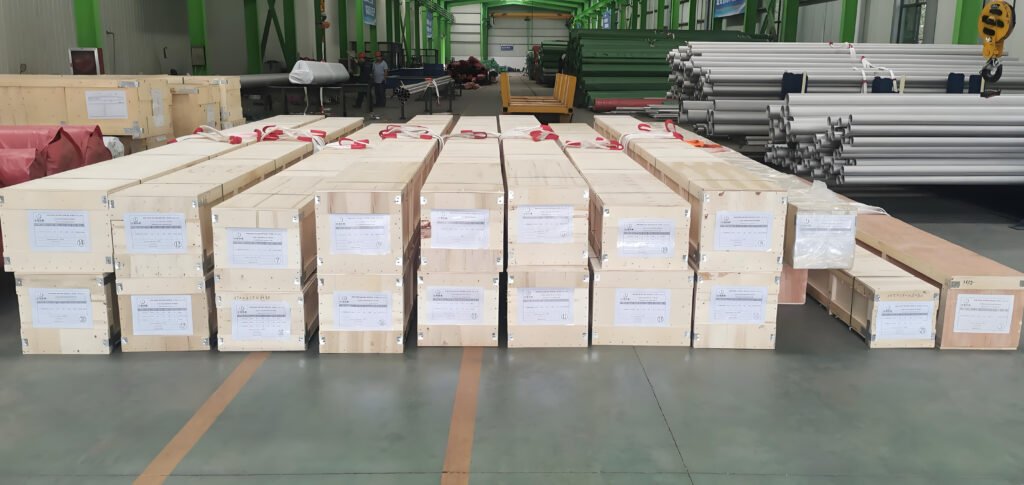

Straight Tube Packing
Supported bundles or cases with agreed restraints, contact protection and tube-end protection.Identification is maintained so that the packed tubes can be matched to the order and material records.

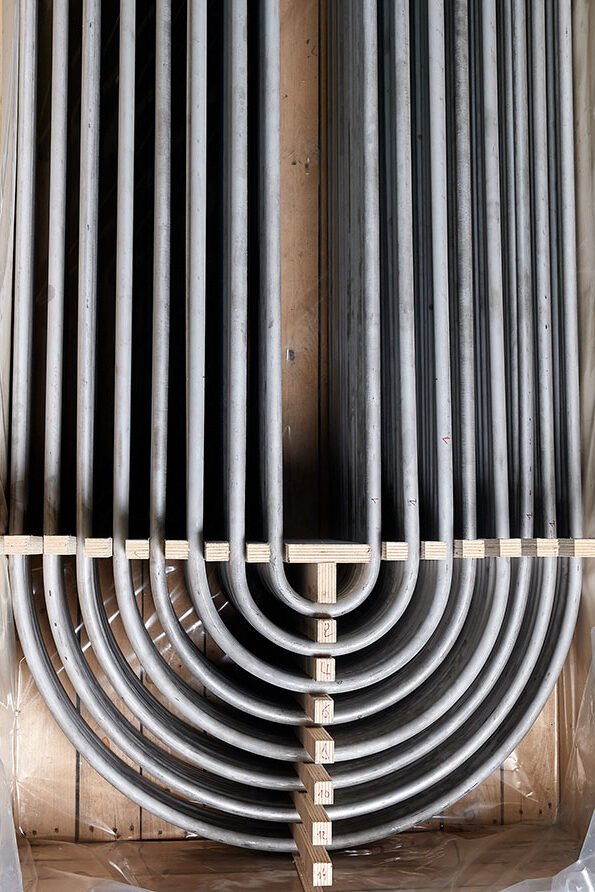

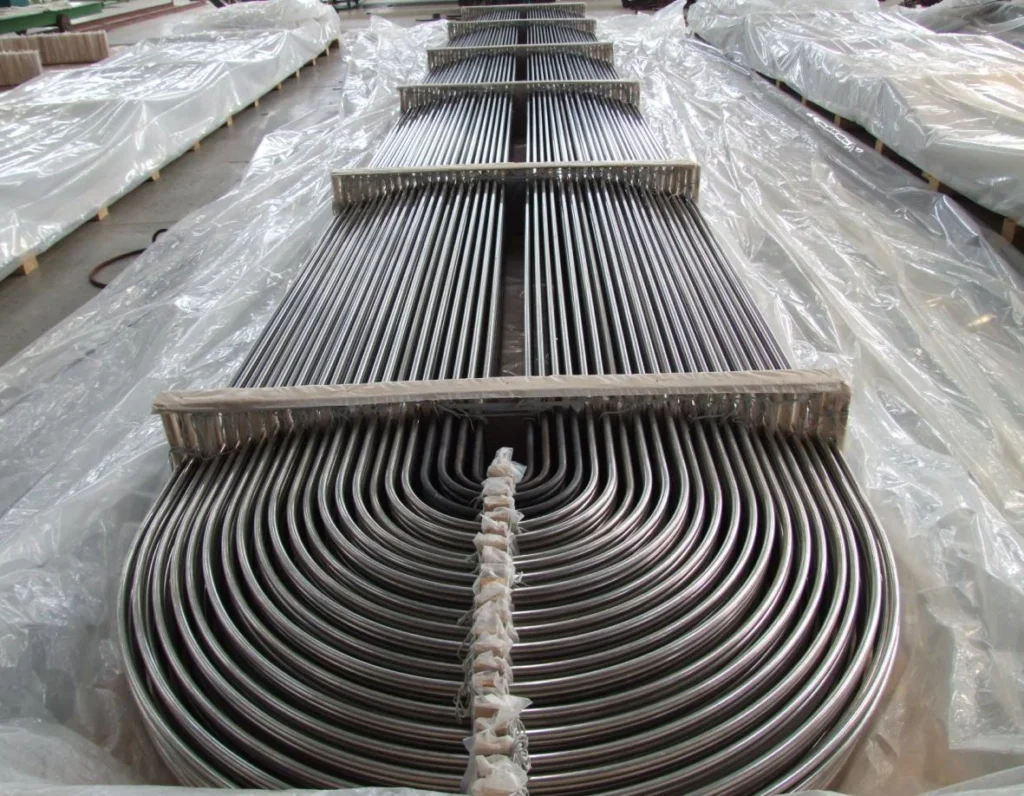

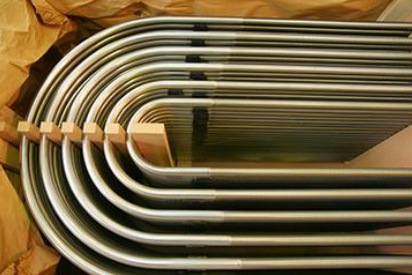

U-Bend Tube Packing
Packing arrangements consider the bend radius, leg length and finished alignment.Suitable supports and restraints are reviewed to protect the curved sections and straight legs during handling.

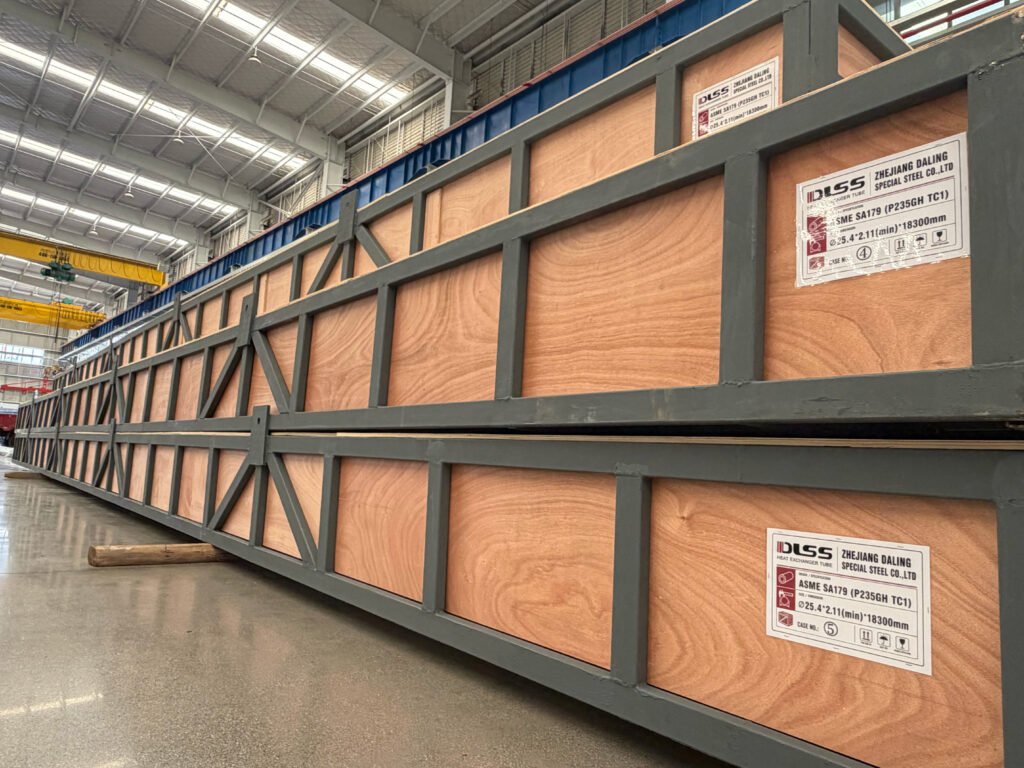

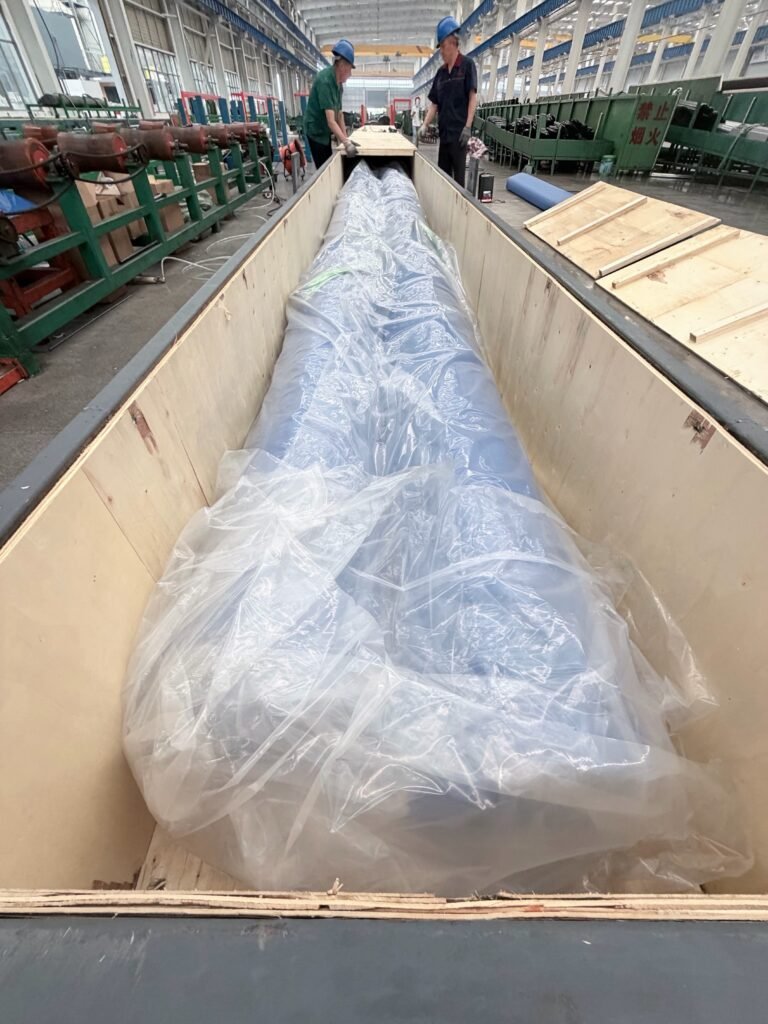

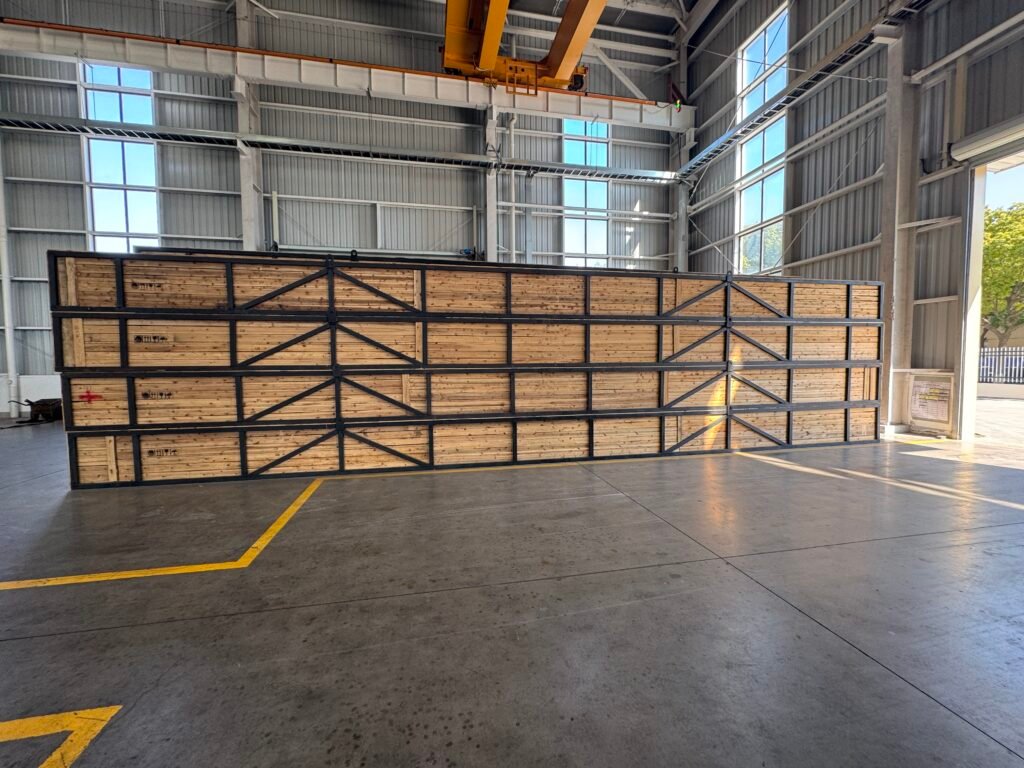

Long Length Tube Packing
Extended-length tubes require a coordinated support, handling and shipment plan.Cases or frames are reviewed against the finished packing length, weight distribution and loading arrangements.

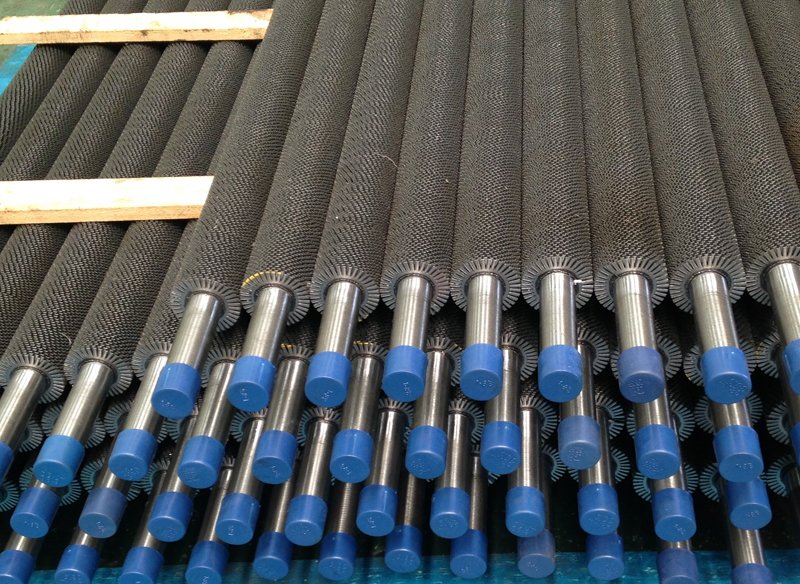

Finned Tube Packing
Support and separation arrangements are reviewed to protect the fin profile, tube surface and plain ends.Packing should limit movement without placing unsuitable loads on vulnerable fin sections.
Key Protection
- Tube Ends
- Surface Contact
- Bundle Restraint
Key Protection
- Bend Support
- Leg Restraint
- Radius Identification
Key Protection
- Support Layout
- Handling Plan
- Shipment Dimensions
Key Protection
- Fin Protection
- Tube Separation
- Plain Ends
Packing is selected for the finished product and delivery route—not only for the material grade.
Protection & Handling Requirements
The packing specification should identify the required protection, handling conditions and information needed for shipment acceptance.
Surface & Cleanliness
- Contact Materials
- Clean Handling
- Surface Protection
Review wrapping, contact materials and any preservation requirements against the specified surface and cleanliness condition.
Tube-End Protection
- Caps
- End Guards
- Identification
Select end protection according to tube dimensions, finished condition and handling requirements.
Supports & Restraints
- Support Positions
- Separation
- Movement Control
Review the support arrangement and restraints for the packed product.
Moisture & Storage Conditions
- Exposure
- Storage Duration
- Protection Requirements
Confirm the expected storage environment and any agreed moisture-control or corrosion-protection measures.
Handling & Stackability
- Lifting Arrangements
- Stack Limits
- Receiving Equipment
Identify handling requirements, package limitations and any restrictions at the receiving site.
Package Dimensions & Weight
- External L × W × H
- Net Weight
- Gross Weight
Confirm the finished package data rather than relying only on the bare-tube dimensions.
Special cleanliness, preservation, outdoor storage and site-handling requirements should be identified before packing is finalized.
Wood Packaging Requirements
Where regulated solid-wood packaging or dunnage is used, applicable treatment and marking requirements are reviewed for the destination.
Shipment Planning & Delivery Scope
Transport options are reviewed against the packed dimensions, gross weight, destination, required schedule and carrier acceptance.

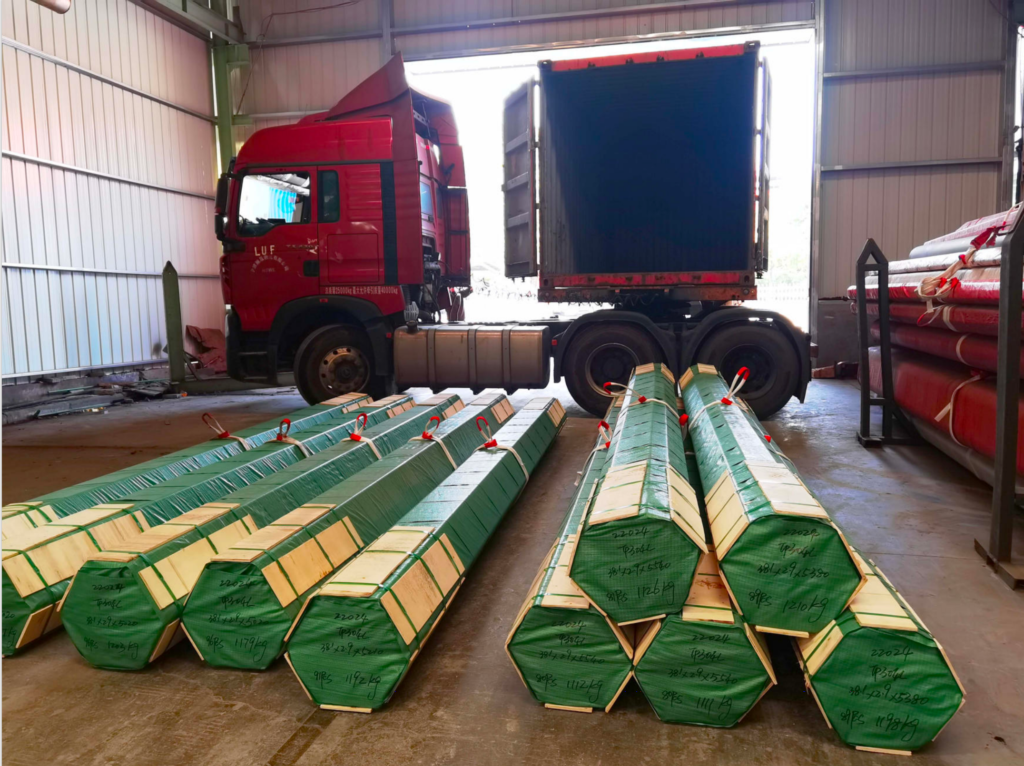

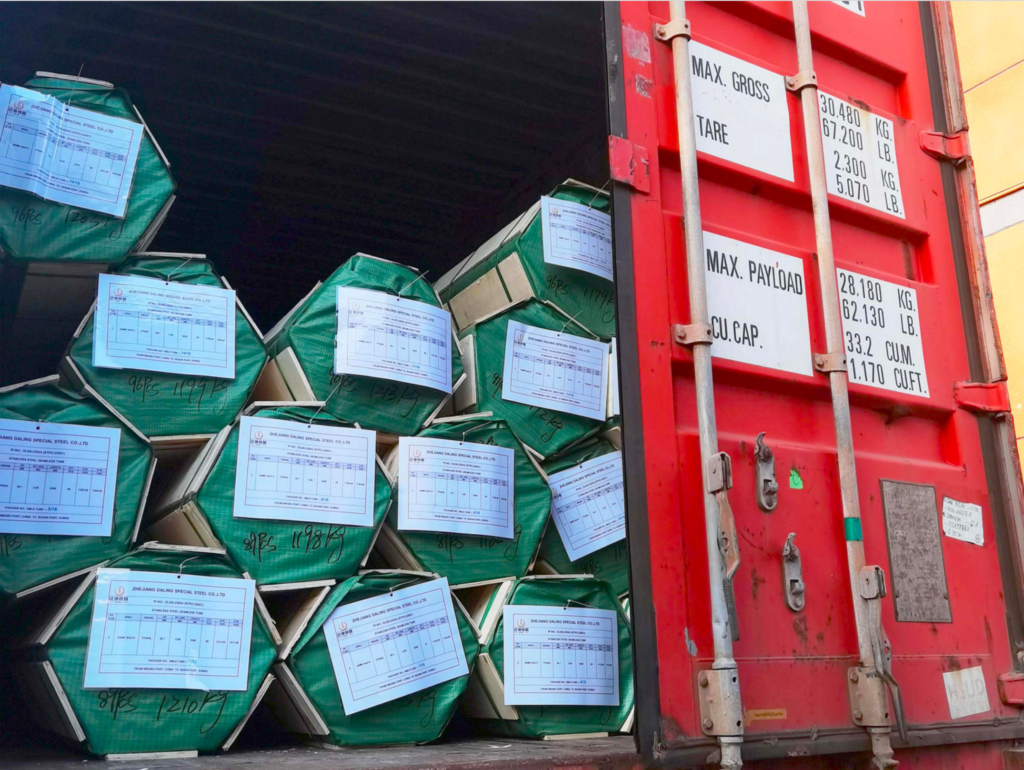

Containerized Shipment
Review container suitability, loading access, package dimensions, weight distribution and cargo-securing requirements.

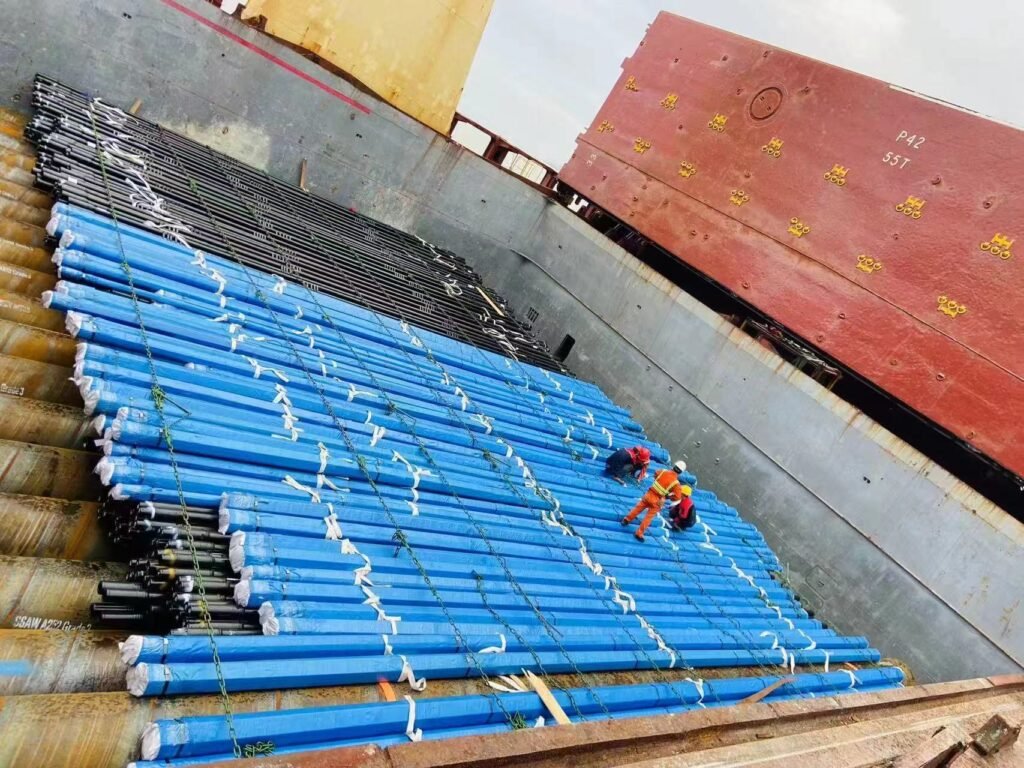

Oversized & Long Cargo
Special-equipment or breakbulk options are evaluated for cargo that cannot be handled through the proposed standard-container arrangement.The proposed shipment must be reviewed with the relevant transport providers before confirmation.

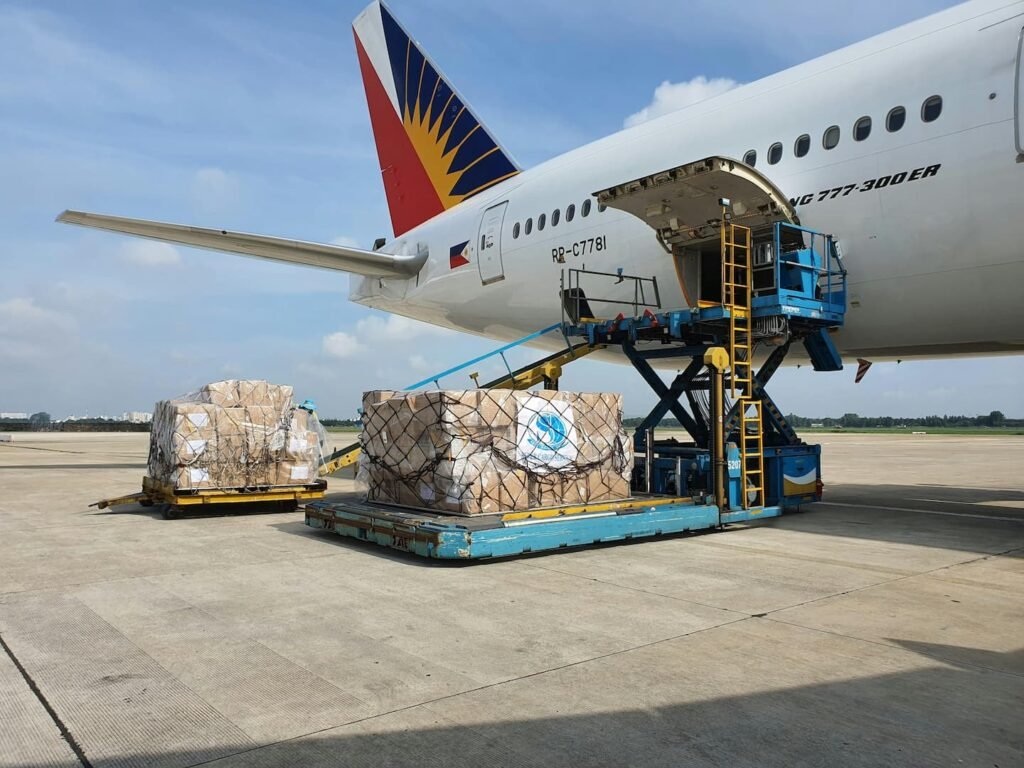

Air Freight for Suitable Cargo
Air-freight feasibility is reviewed for suitable tube shipments, considering package size, weight, handling and the available service.
Review Points
✔️ Packed Dimensions ✔️ Loading Access ✔️ Weight ✔️ Securing
Review Points
✔️ Overlength ✔️ Handling Arrangements ✔️ Route ✔️ Carrier Acceptance
Review Points
✔️ Package Size ✔️ Weight ✔️ Handling ✔️ Required Schedule
The shipment method is confirmed from the finished packing dimensions—not from tube length alone.
Delivery Responsibilities
The agreed delivery term, named place, freight scope, insurance arrangements, customs responsibilities and unloading requirements are confirmed in the quotation and contract.“Global Delivery” does not automatically include import clearance, duties, taxes or unloading.
Pre-Shipment Checks & Delivery Records
Before dispatch, the packed products and available shipment records are reviewed against the agreed delivery requirements.
Confirm Release Status
Review the required inspection status, outstanding findings and agreed release documents.
Verify Packing & Identification
Check product identification, quantities, package references, visible protection and agreed packing requirements.
Confirm Shipment Data
Reconcile package dimensions, weights, destination information and transport arrangements.
Prepare the Delivery Package
Coordinate the required commercial, transport and product documents, together with agreed receiving information.
Inspection Status · Required Records · Release
Product Identity · Quantity · Packing Condition
Dimensions · Weights · Destination · Booking Details
Shipping Documents · Product Records · Receiving Information
Supporting Records
✔️Packing List ✔️ Commercial Invoice ✔️ Applicable Transport Document ✔️ Required Product Certificates ✔️ Packing / Loading Photos Where Agreed
Additional documents, such as origin, insurance or wood-packaging records, are provided where applicable to the agreed shipment.
Any special receiving, unpacking or storage instructions are agreed as part of the delivery requirements.
