Titanium Heat Exchanger Tubes for Seawater and Corrosive Service

ASTM B338 and ASME SB338 titanium tubes for condensers, coolers and shell-and-tube heat exchangers.DLSS supplies Grade 1, Grade 2, Grade 7 and Grade 12 titanium tubes with specification review, material traceability, testing and third-party inspection support.

DLSS Heat Exchanger Tubes Titanium Heat Exchanger Tubes

Titanium Tubes Built for Difficult Cooling Media

Seawater, chlorinated water and aggressive process fluids can cause early corrosion failure in common tube materials.

Titanium forms a stable protective oxide film and provides strong resistance to seawater, chlorides, salt brines and many oxidizing environments.

It is widely selected for condensers, seawater coolers, desalination systems and industrial heat exchangers where corrosion control and long service life are important.

• Seamless and Welded Tube Options
• Straight and U-Bent Tubes
• EN 10204 3.1 and 3.2 Support
• ET, UT and Pressure Testing as Required

Titanium Heat Exchanger Tube Specifications

ASTM B338 is the main product standard for seamless and welded titanium tubes used in surface condensers, evaporators and heat exchangers.Testing requirements depend on the manufacturing route, grade and purchase specification. DLSS reviews the required tests before production to avoid documentation or inspection problems later.

Item	Available Supply
Product	Straight heat exchanger tubes, condenser tubes and U-bent tubes
Standards	ASTM B338 / ASME SB338
Common Grades	Grade 1, Grade 2, Grade 7 and Grade 12
Other Grades	Available according to project specifications
Manufacturing Route	Seamless or welded and cold-worked
Outside Diameter	According to tube sheet, drawing or purchase specification
Wall Thickness	According to project design
Length	Fixed length, cut length or long length
U-Bending	Bend radius, straight-leg length and heat treatment according to drawing
Surface	Annealed, pickled or project-specified clean surface
Documentation	EN 10204 3.1; EN 10204 3.2 and TPI support on request
Packaging	Protected tube ends and seaworthy wooden cases

Straight, Welded and U-Bent Titanium Tubes

Titanium is not suitable for every process medium.Strong reducing acids, fluoride-containing solutions, pure oxygen and anhydrous chlorine require careful material review.Please provide the operating temperature, pressure, fluid composition, chloride level and pH when requesting material-selection support.

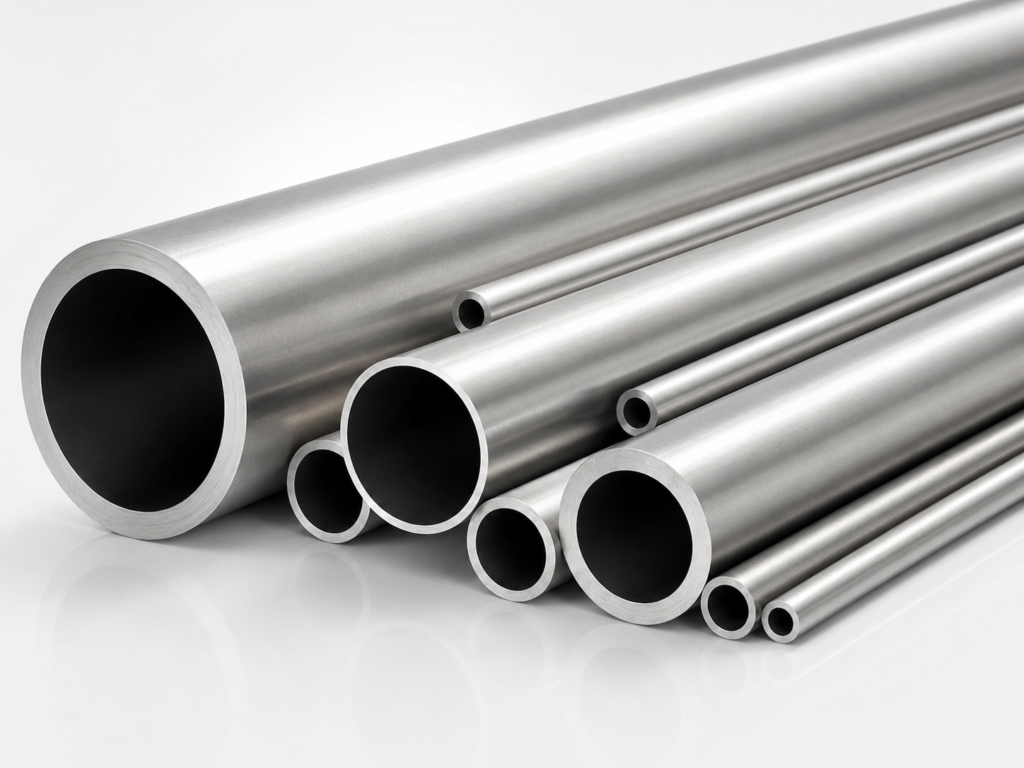

Seamless Titanium Tubes

Seamless tubes are produced by cold working from hollow material and are selected for projects requiring consistent dimensions, clean surfaces and strict mechanical properties.

Welded and Cold-Worked Titanium Tubes

Welded tubes are produced from flat-rolled titanium material. According to ASTM B338, the welded area is cold worked and heat treated to obtain the required tube structure and properties.

Titanium U-Bent Tubes

U-bent titanium tubes can be supplied according to the exchanger drawing or tube sheet.

Please provide the outside diameter, wall thickness, developed length, bend radius, straight-leg length, pitch and required bend-area heat treatment.

Which Titanium Grade Should You Select?

Titanium is not suitable for every process medium.Strong reducing acids, fluoride-containing solutions, pure oxygen and anhydrous chlorine require careful material review.Please provide the operating temperature, pressure, fluid composition, chloride level and pH when requesting material-selection support.

Grade	Main Characteristics	Typical Selection
Titanium Grade 1	High ductility and good forming performance	Condensers and applications requiring easier forming
Titanium Grade 2	Balanced strength, formability and corrosion resistance	Seawater coolers, condensers, desalination and chloride service
Titanium Grade 7	Palladium-alloyed commercially pure titanium	More demanding chemical, crevice-corrosion and reducing-acid conditions
Titanium Grade 12	Higher strength than Grade 2 with improved hot-brine crevice resistance	Chemical processing, hot brines and elevated-temperature service

Inspection Before Your Tubes Are Shipped

A titanium tube order should not be checked only by grade and dimensions.DLSS reviews the complete purchase specification, including manufacturing method, tube tolerances, testing requirements, certification and inspection points.

1. Specification and drawing review before production

2. Raw material heat and batch traceability

3. Outside diameter, wall thickness and length inspection

4. Visual and surface condition inspection

5. Mechanical and corrosion-related tests as specified

6. ET, UT, hydrostatic or pneumatic testing as applicable

7. Third-party inspection support when required

8. Pre-shipment photographs, reports and packing verification

Available documentation may include:

• Material Test Certificate • Chemical Composition Report • Mechanical Test Report • Nondestructive Testing Report • Hydrostatic or Pneumatic Test Report • Dimensional Inspection Report • Heat Treatment Record • EN 10204 3.1 Certificate • EN 10204 3.2 Certificate • Third-Party Inspection Release Note

Frequently Asked Questions

What is the main standard for titanium heat exchanger tubes?

ASTM B338 and ASME SB338 are the main specifications for seamless and welded titanium tubes used in condensers, evaporators and heat exchangers.

What is the difference between ASTM B338 and ASTM B861?

ASTM B338 covers titanium tubes for condensers and heat exchangers. ASTM B861 covers seamless titanium pipe for general corrosion-resistant and elevated-temperature service.

For a shell-and-tube heat exchanger project, ASTM B338 is normally the relevant tube standard unless the project specification states otherwise.

What is the difference between Titanium Grade 2 and Grade 7?

Grade 2 is a commercially pure titanium grade widely used for seawater and chloride cooling.

Grade 7 contains palladium and is normally selected when stronger resistance to crevice corrosion or reducing chemical environments is required.

Can DLSS supply titanium U-bent tubes?

Yes. U-bent tubes can be supplied according to the tube sheet and bending drawing. The bend radius, developed length, straight-leg length and required bend-area heat treatment must be confirmed before production.

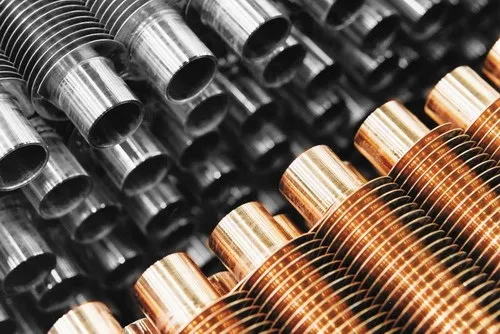

Finned Tubes for Heat

Finned tubes are widely used in heat exchangers, boilers, economizers, air coolers, condensers, evaporators, and heat recovery systems. Their main purpose is simple: increase the heat transfer surface area without greatly increasing the size of the equipment. However, finned tube selection is not only about adding more fins. A good design must balance heat transfer […]

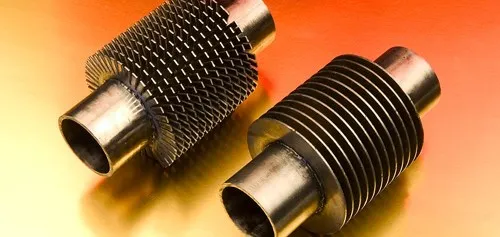

In‑Depth Guide to Finned

Overview & Industry Outlook Finned tubes are rapidly gaining attention in 2025 due to their unmatched ability to enhance thermal transfer efficiency in compact spaces. According to MarketWatch, the finned tube heat exchanger market is projected to reach USD 20+ billion globally, driven by the expanding needs of HVAC systems, power generation, petrochemicals, and industrial […]

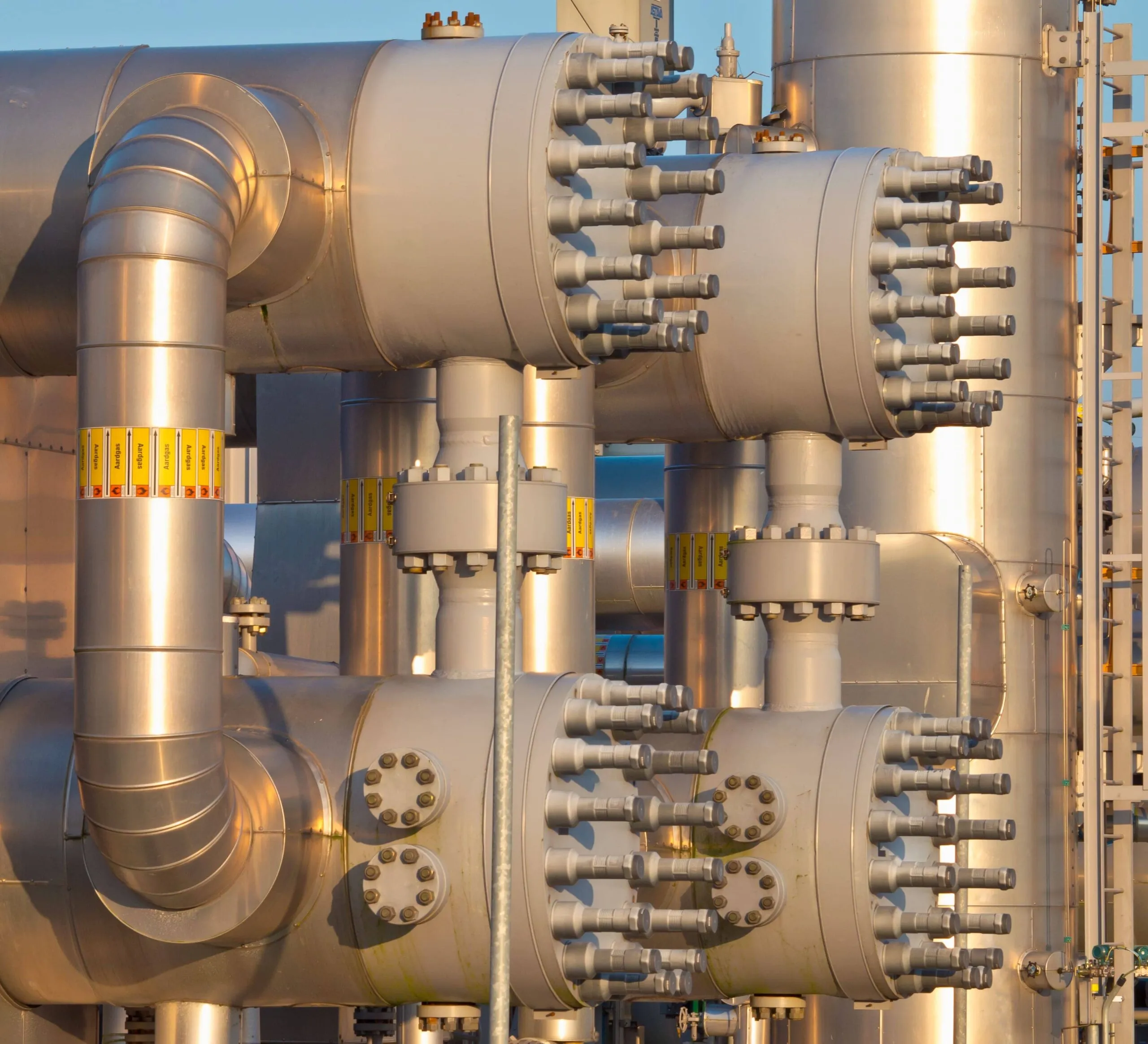

Advanced Pipe-Based Heat Exchanger
