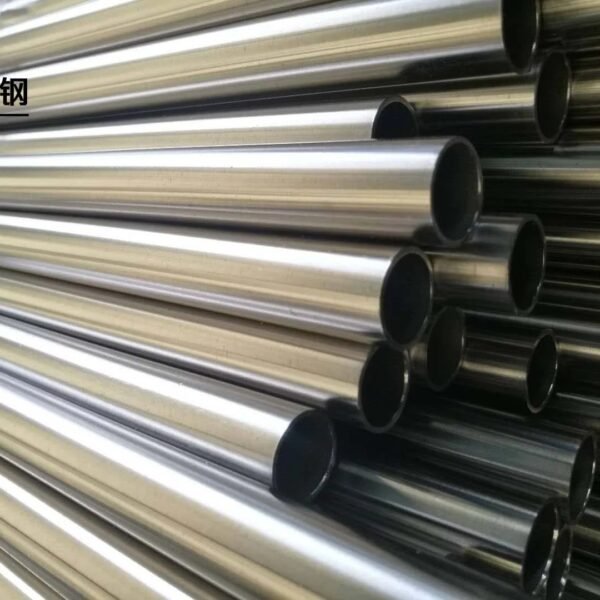

Product Overview: ASTM A213/ASME SA213 TP321 Seamless Tube (1.4541)
The ASTM A213/ASME SA213 TP321 (1.4541) seamless tube is a high-performance, austenitic stainless steel tube designed for critical applications in heat exchangers and other high-temperature, high-stress systems. Known for its excellent corrosion resistance, especially against sulfuric and nitric acids, and its ability to withstand oxidation in continuous service temperatures up to 900°C (1652°F), TP321 is a popular choice for industries such as petrochemical, power generation, and chemical processing.
This seamless tube has been specifically engineered for use in heat exchangers, offering reliable performance in the most demanding conditions.

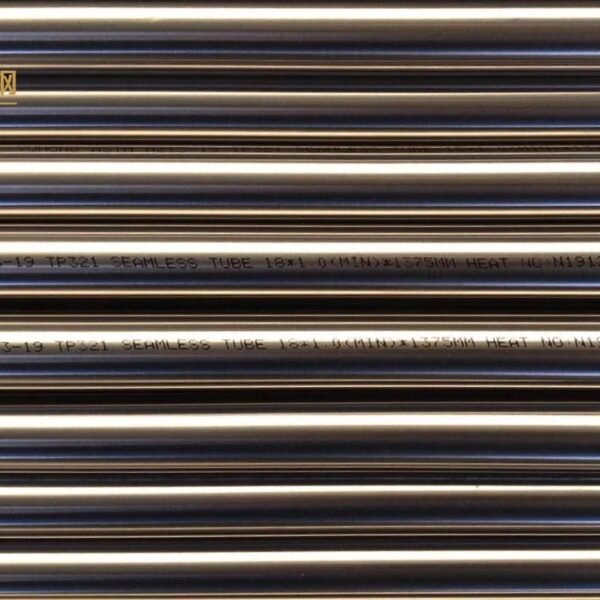

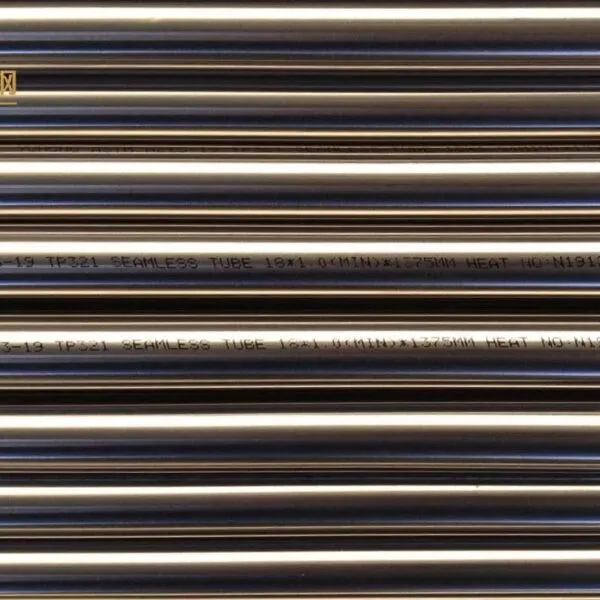

Key Specifications of ASTM A213/ASME SA213 TP321 Seamless Tube
- Material Grade: TP321 (UNS S32100), a titanium-stabilized austenitic stainless steel that provides excellent resistance to intergranular corrosion and high-temperature oxidation.
- Dimensions:
- Outer Diameter (OD): 18mm
- Wall Thickness: 1.0mm
- Length: 1375mm
- Surface Finish: Bright Annealed (BA), which provides a smooth, clean surface with minimal oxidation, making it ideal for applications requiring high cleanliness standards.
- Manufacturing Process: Seamless hot-rolled or cold-drawn, ensuring no welded seams, which enhances strength and reliability.
- Standards Compliance: Conforms to ASTM A213 and ASME SA213, ensuring it meets the highest quality and industry standards for seamless tubing.
Chemical Composition and Mechanical Properties
Chemical Composition (Typical TP321):
- Carbon (C) ≤ 0.08%
- Chromium (Cr) 17.0–19.0%
- Nickel (Ni) 9.0–12.0%
- Titanium (Ti) ≥ 5 × (C + N)
- Manganese (Mn) ≤ 2.0%
- Silicon (Si) ≤ 0.75%
- Phosphorus (P) ≤ 0.045%
- Sulfur (S) ≤ 0.030%
The titanium stabilizing effect prevents carbide precipitation during welding, making TP321 ideal for high-temperature applications.
Mechanical Properties:
- Tensile Strength: ≥ 515 MPa (75 ksi)
- Yield Strength: ≥ 205 MPa (30 ksi)
- Elongation: ≥ 40%
These properties ensure the tube performs effectively under high pressures and temperatures, especially in heat exchangers where thermal expansion and contraction are common.
Applications and Use in Heat Exchangers
The ASTM A213/ASME SA213 TP321 seamless tube is primarily used in the following applications:
1. Heat Exchangers:
TP321 is widely used in heat exchangers due to its excellent resistance to high temperatures and corrosion. Its ability to withstand high thermal cycling makes it a reliable choice for this application.
2. Boilers and Steam Systems:
The tube is also used in boilers and steam systems where resistance to oxidation and corrosion in the presence of high-pressure steam is essential.
3. Chemical Processing:
In chemical processing plants, TP321 is used for systems that deal with highly corrosive media. The titanium content in the alloy helps protect the tube from corrosion in harsh chemical environments.
4. Power Generation:
Due to its resistance to high temperatures and oxidation, TP321 is also commonly used in the power generation industry, particularly for heat exchangers, condensers, and boilers.
5. Aerospace & Automotive:
The high heat resistance and strength make TP321 a good choice for aerospace and automotive components, particularly in exhaust systems and high-stress applications.
Manufacturing and Quality Control of ASTM A213/ASME SA213 TP321 Seamless Tube
At DLSS, we adhere to the highest manufacturing standards to produce seamless tubes that offer exceptional performance and reliability.
Manufacturing Process:
- Hot-Rolled and Cold-Drawn: The tube is produced through seamless hot-rolling or cold-drawing processes, offering high dimensional accuracy and excellent surface finish.
- Bright Annealed Surface: The Bright Annealed (BA) finish ensures a smooth, clean surface that minimizes oxidation and enhances the tube’s appearance. This surface treatment also helps improve its resistance to corrosion.
- Seamless Construction: The seamless design enhances mechanical strength and durability compared to welded alternatives, making it suitable for high-pressure and high-temperature applications.
Quality Control:

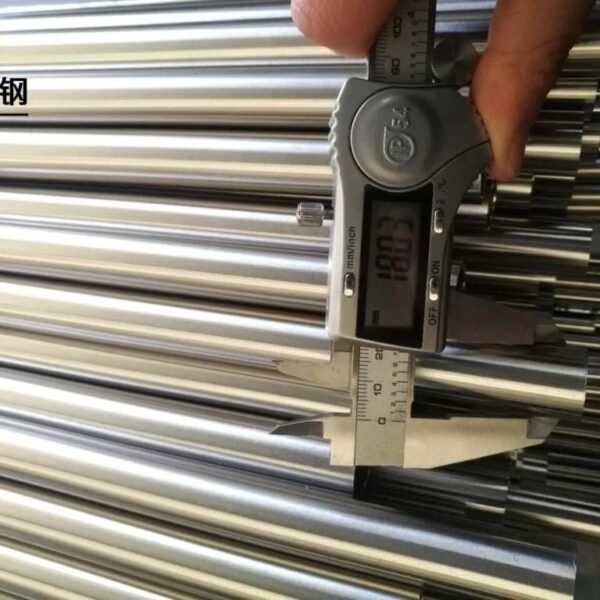

- Inspection: Each tube is subject to comprehensive quality control processes, including visual inspection, dimensional checks, and testing for surface finish and cleanliness.

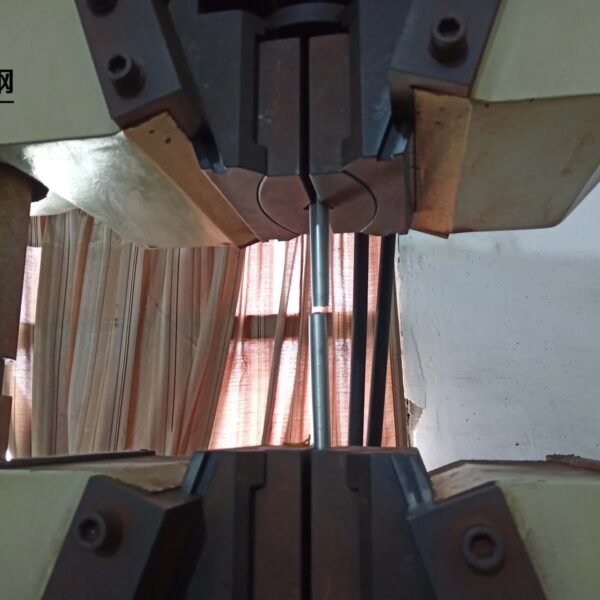

- Testing: We conduct chemical analysis, tensile testing, and mechanical property testing to ensure that each tube meets or exceeds industry standards.
- Certification: All products come with the necessary certifications, including 3.1B certificates in compliance with EN 10204, ensuring material traceability and compliance with the required specifications.
Key Purchasing Considerations for ASTM A213/ASME SA213 TP321 Seamless Tube
When purchasing ASTM A213/ASME SA213 TP321 seamless tubes, consider the following key points:
- Material Specification: Confirm that the tube meets ASTM A213/ASME SA213 standards, ensuring high quality and performance.
- Surface Finish: Bright Annealed surface is ideal for applications requiring minimal oxidation and high cleanliness.
- Tube Dimensions: Verify that the outer diameter, wall thickness, and length meet your specific application requirements.
- Quality Assurance: Ensure the tube comes with the necessary material certifications and test reports, including the 3.1B certificate.

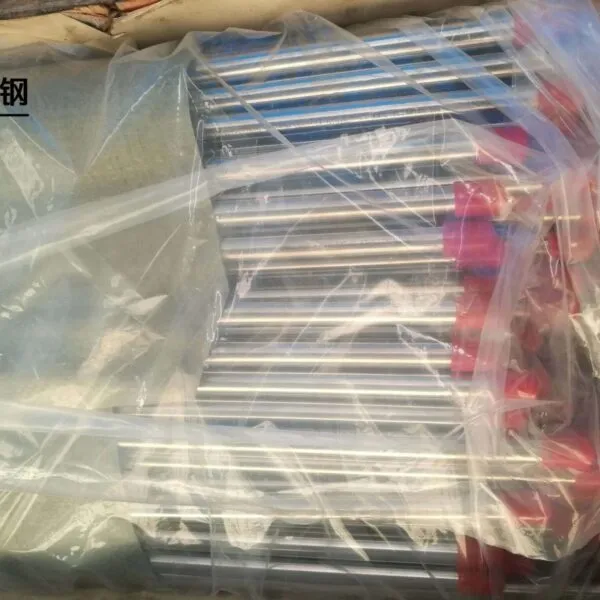

- Logistics and Packaging: Check that the tube is properly packaged to prevent damage during transport, especially when dealing with long or thin-walled tubes.
Summary: Why Choose ASTM A213/ASME SA213 TP321 Seamless Tube?
The ASTM A213/ASME SA213 TP321 seamless tube is an ideal choice for industries requiring high-performance tubing with superior resistance to heat and corrosion. Below are the top advantages:
| Advantage | Description |
|---|---|
| High-Temperature Resistance | TP321 offers excellent oxidation resistance at high temperatures, making it suitable for use in heat exchangers and boilers. |
| Corrosion Resistance | The titanium stabilizing effect prevents intergranular corrosion, enhancing the tube’s lifespan in corrosive environments. |
| Reliability | The seamless construction ensures high strength and durability, making it ideal for demanding applications. |
| Wide Applicability | Suitable for various industries, including chemical processing, power generation, and aerospace. |
Conclusion: Ensure High Performance with ASTM A213/ASME SA213 TP321 Seamless Tube
ASTM A213/ASME SA213 TP321 seamless tubes provide exceptional durability and resistance to high-temperature oxidation and corrosion, making them the preferred choice for applications in heat exchangers, boilers, and chemical processing systems. By choosing DLSS, you ensure that your system operates efficiently and reliably, even under the most demanding conditions.
For more details on sizes, pricing, or to request a quote, please contact DLSS. Our team of experts is ready to assist you in selecting the right tube for your needs.
